Assessing Coagulation
Clinical Applications
(Perioperative and ICU Concerns)

Back Up

• Full warfarin anticoagulation
• Other controversies in peri-operative anticoagulation
• Heparin
• Heparin infusion protocol
• Heparin Antagonism
• Warfarin
• Warfarin dosage Scheme
• Venous Thromboembolism
• Disseminated Intravascular Coagulation
• Platelet transfusion

Full warfarin anticoagulation

Management of patients presenting for surgery on full warfarin anticoagulation is controversial.  The warfarin will be for three basic reasons, deep vein thrombosis prevention, prevention of atrial thrombosis in atrial fibrillation and the prevention of thrombosis on a mechanical valve.

A coagulation profile that is as near to normal as possible is needed to prevent excess bleeding from any type of surgery.  This must be balanced against removing the anticoagulation which increases the risk of thrombosis.  The inherent risk of venous thrombosis present with all surgery will be increased in patients who have had a previous deep vein thrombosis.  The risk of arterial thrombosis will revert back to that seen in a non anticoagulated setting.

The indication for the anticoagulation, the pre-operative risk for thrombosis (venous and arterial) and the risks of postoperative bleeding must be weighed carefully in all patients.  Essentially we should decide between two different management strategies.

1. High Risk of Pre-operative Thrombosis

• Venous thrombosis
• An acute episode of Deep vein thrombosis within the last three months
• Multiple previous acute episodes of deep vein thrombosis
• Hereditary thrombophilic state
• Active carcinoma
• Atrial/arterial thrombosis
• Clinical criteria
  Previous cerebrovascular accident
  Female over the age of 75 years
  Hypertensive patients
  Left ventricular dysfunction
  Congestive Cardiac Failure
• Trans-oesophageal criteria
  Complex aortic plaque
  Existing left atrial thrombus
  Dense spontaneous echocardiographic contrast
• Mechanical Heart Valve
• Previous valvular thrombosis
• Caged-ball (Star-Edwards) and tilt (Bjork-Shiley) type valves in the mitral position

A protocol driven, perioperative Heparin infusion will prevent a significant number of fatal and serious complications that would arise in a non-anticoagulated patient.

2. Low risk of peri-operative thrombosis

• Mechanical Heart Valve - Benefit from pre-operative protocol driven Heparin infusion
  • Bileaflet (St Jude) type valve in the aortic position¹⁴

• Warfarin is stopped 3 days prior to surgery
  • INR must be <1.5 prior to surgery
• Additional prophylaxis against deep vein thrombosis is instituted peri-operatively
  1. Pneumatic compression of the lower legs
  2. Low molecular weight heparin is given
• Warfarin is restarted as soon as possible after surgery

Other controversies in anticoagulation

Patients who are on low dose subcutaneous heparin or low molecular weight heparin for deep vein thrombosis prophylaxis and patients who are on low dose aspirin therapy are not considered to be at an increased risk of epidural or subarachnoid haematoma formation.

• Wille-Jorgensen, P.  Jorgensen, L.  Lumbar regional anaesthesia and prophylactic anticoagulant therapy; is the combination safe?  Anaesthesia 1989; 46: 623-627.
• Vandermeulen, E.  van Aken, H.  Anticoagulants and spinal-epidural anaesthesia.  Anesth Analg 1994; 79: 1165-1177.
• Berqvist, D.  Lindblad, B.  Risk of combining low molecular weight heparin for thromboprophylaxis and epidural or spinal anaesthesia.  Semin Thromb Hemost 1993; 19 Suppl. 1: 147-151.
• Wolf, H.  Experience with regional anaesthesia in patients receiving low molecular weight heparins. Semin Thromb Hemost 1993; 19 Suppl. 1: 152-154
• de Sweit, M.  Redman, C.  Aspirin, extradural anaesthesia and the MRC collaborative low-dose aspirin study in pregnancy (CLASP). [letter]  Br j Anasthe 1992: 69: 109.

Patients on full heparin anticoagulation or who will be placed on full heparin anticoagulation intra-operatively may have a rachidial block provided the following criteria are adhered to.

• There must be a clear benefit of regional anaesthesia for the patient
• The surgery can be delayed if there is a "bloody tap" during the block.
• The aPTT must be documented as normal prior to insertion of the block
• The heparin may only be started a minimum of 2 hours after the block
• An epidural catheter can only be removed during a break in anticoagulation
  • 4 hours after stopping a heparin infusion
  • 2 hours prior to restarting a heparin infusion
• The patient is monitored frequently in the post operative period for neurological impairment and back pain.
• Vandermeulen, E.  van Aken, H.  Anticoagulants and spinal-epidural anaesthesia.  Anesth Analg 1994; 79: 1165-1177.

"Heparin"

Action

Enhancement of the action of the serine protease inhibitors AT III and heparin co factor II.

A specific 5 sequence sugar is responsible for the binding of heparin to AT III and an exponential increase in its antifactor Xa activity, a further 13 sugars are needed to cross link the AT III and thrombin in order to increase ATIII's antithrombin action

Heparin does not inhibit thrombin bound to fibrin or Xa bound to platelets.

Unfractioned heparin has a Xa:Thrombin inhibiting effect of 1:1.
The low molecular weight heparins have varying Xa:Thrombin inhibiting effects
    Dalteparin - Fragmin 2.7:1
    Enoxaparin - Clexane 3.8:1

Heparin causes the release of extrinsic pathway inhibitor

Unfractionated and low molecular weight heparins release extrinsic pathway inhibitor from the endothelium and enhance its inhibitory activity against factor Xa and VIIIa.

Biokinetics

Absorption

• 30% of a subcutaneous dose of unfractionated heparin is absorbed
• 80% or more of a subcutaneous dose of low molecular weight heparin is absorbed, reflecting less binding to the endothelium.

Distribution

• Unfractionated heparin is highly protein bound to all the acute phase reactant proteins with a volume of distribution equal to whole body water (600ml/Kg) due to endothelial cell binding
• Heparin binds avidly to the plastic of infusion sets
• Low molecular weight heparin binds less to plasma proteins and the acute phase reactants, resulting in a more predictable anticoagulant response.

Metabolism

• Unfractionated heparin has a rapid redistribution phase followed by a saturatable zero order elimination phase t_1/2 life ~2hours
• Low molecular weight heparin has a rapid redistribution phase followed by an unsaturatable first order elimination phase t_1/2life ~4hours.  This dose independent clearance and longer half life is due to the fact that the low molecular weight heparins are less bound to macrophages
• Note that the half life of unfractionated heparin in the controlled clinical situation can be assumed to be 0.5 - 1hour. With very high doses, the apparent half life may be vastly increased.

Excretion

• Hepatic clearance predominates for the unfractionated heparin
• Low molecular weight heparins have a renal clearance that is slower than their hepatic clearance, reflecting a decreased binding to macrophages.  Laboratory monitoring is mandatory in renal insufficiency.

Chemistry

Heparins are strongly negativly charged, acidic glycoaminoglycans (mucopolysaccharides) consisting of chains of alternating residues of D-glucosamine and uronic acid, either glucuronic acid or iduronic acid..   Unfractionated heparin consists of chain lengths which vary from 3000 to 30 000 Daltons.

The low molecular weight preparation consists of chain lengths which vary from 3000 to 9000 Daltons.  They are manufactured from unfractionated porcine heparin by controlled depolymerisation

• Chemical - Nitrous oxide, alkaline hydrolysis or peroxidative cleavage..
• Enzymatic - Hepariniase

Dose

Effects

• Antithrombin, anti-Xa and extrinsic pathway inhibitor effect
  • Anticoagulation and prevention of clot propagation
  • Haemorrhage - local at the site of injection and systemic especially GIT
• Thrombocytopaenia
  • Mild nonidiosyncratic reaction - heparin binds to platelet factor 4 causing platelet activation. Occurs on 2-4 day of treatment with unfractionated heparin and resolves spontaneously during continued therapy
    Low molecular weight heparin binds less avidly to platelet factor 4 and is less likely to cause thrombocytopaenia.
  • Severe IgG or IgM mediated "auto immune" thrombocytopaenia directed against heparin bound to platelet factor 4.
    This forms a complex on the surface of the platelet and activates the Fc receptor causing widespread platelet degranulation.
    The antibody cross reacts with the endothelial cell surface glycosaminoglycans bound to platelet factor 4 causing severe antibody mediated vascular injury with thrombus formation.
    The syndrome occurs 6-7 days after initial exposure, predominantly to unfractionated heparin and will only terminate with withdrawl of heparin.  Re-exposure to heparin, even low molecular weight heparin will re-establish the heparin induced thrombocytopaenia.
• Alopecia
• Hypoaldosteronism with associated metabolic acidosis and hyperkalaemia
• Osteoporosis related to 20 000 units / day for 6 months especially in pregnancy
• Reduction in plasma triglycerides due to release of lipoprotein lipase
• Regulation of angiogenesis and maintenance of endothelial wall competence
• Antiproliferative effect on vascular smooth muscle after endothelial injury

Formulation

Heparin is currently obtained from the lung or gut mucosa of cattle and pigs.   It is available as either a sodium or a calcium salt.

• Unfractionated Heparin injection
  • 1 000 units/ml
  • 5 000 units/ml
• Unfractionated heparin as Calciparine
  • 5000 units/syringe of 0.2ml = 25 000 U/ml
• Low molecular weight heparin
  • enoxaparin - Clexane 20mg/syringe of 0.2ml = 100mg/ml
  • dalteparin - Fragmin

Inadequate heparin response

• Specific disease states
  • Antithrombin III deficiency
    • Congenital
    • Acquired
  • Hypereosinophilia
  • Coronary artery disease
• Drug interactions
  • Previous heparin therapy
  • Oral contraceptives
• Errors of administration
  • Wrong product
  • Wrong dose
  • Wrong route
• Others
  • Ongoing active coagulation
  • Advanced age.

Reversal

1. Allowing spontaneous dissipation of heparin effects
2. Protamine sulphate - acid/base, anionic/cationic reaction forms a harmless precipitate. Protamine has intrinsic anticoagulation properties of its own and must be titrated. 1.3mg/Kg/100 units unfractionated  heparin still predicted to be circulating. Protamine is available as 10mg per 5ml
• Adverse effects
  • Hypotension -
    The Heparin/Protamine complex releases histamine, predominantly from lung macrophages.  This can be decreases by giving protamine slowly and into the arterial circulation allowing dilution of the complex prior to exposure to the lung
  • Pulmonary hypertension -
    The Heparin/Protamine complex activates complement and causes thromboxane release.   Pre-treatment with a cyclooxygenase inhibitor is said to help
  • Allergic reactions
    • True mediated by antibodies formed on prior exposure to protamine
      • Previous bypass surgery
      • Protamine containing insulins
      • Fish allergy
      • ??? vasectomised males
    • Immediate mediated by complement
• Protamine sulphate blocks bleeding induced by low molecular weight heparins in laboratory animals, but there have been no studies in humans.
3. Alternative cationic alkaline agent
   1. Recombinant platelet factor 4 (2.5 to 5mg/kg)
   2. Hexadimethrine - hypotension, pulmonary hypertension and anticoagulation in excess
      - not a popular drug!
   3. Toludine blue

Heparin Protocol

(This protocol is only a guideline. Many other protocols have been proposed.
It is essential that it is applied in the context of sound clinical judgement!)

1. Stop Warfarin 3 days prior to surgery
   • INR must be less than 1.5 for surgery
   • Intravenous low dose Vitamin K (phytomedine) e.g. 0.5-1.0mg [ Shetty et al. Haemostas 1992 67 pp53-62 ] and / or Fresh Frozen Plasma may be used with caution, if urgent surgery is required.
2. Start Heparin infusion and adjust according to the aPTT or ACT
3. Stop the heparin infusion 3 hours prior to surgery
4. Meticulous intra-operative haemostasis is required
5. Restart the heparin infusion 12 hours after the surgery
   • Neurosurgery - Restart the heparin infusion 24 hours after the surgery
   • Ophthalmology - Consult with the surgeon involved
6. Restart the warfarin as soon as oral medication is possible
7. Stop the heparin when the INR is adequate

Heparin Infusion

1. Baseline full blood count, platelet count, INR and aPTT/ACT
2. Bolus with 80 Units/Kg of heparin
3. Start heparin infusion at 18 Units/Kg/hr
   • 20 000 Units heparin per 200mls Normal Saline = 100 Units/ml
   • (Units/Kg/hr x Weight)/100 = mls/hr for infusion
4. Check coagulation profile regularly
   • aPTT must be checked on a daily basis
   • aPTT must be checked six hours after every heparin dose adjustment
   • ACT must be checked on an hourly basis
   • Platelet count must be checked every three days

Warfarin

Action

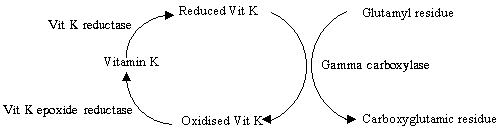

Blockage of vitamin K reductase and vitamin K epoxide reductase:

The inhibition of the gamma carboxylase leads to an accumulation of the inactive precursors of the clotting factors - also known as protein induced by vitamin K absence - PIVKA. This affects factors II, VII, IX, X, Protein C, Protein S - the serine protease enzymes

Biokinetics

Absorption

• Rapid and complete oral absorption

Distribution

• Confined to the extracellular space -  200ml/Kg
• Extensive binding to albumin
• Peak plasma level seen 2-6 hours with a terminal half life of ~40 hours.
• Anticoagulation effect first seen in 8-12hours (Elimination half life of previously formed factors).
• Maximum anticoagulation in 36-72 hours (2-3 days)

Metabolism

• Liver to inactive metabolites

Excretion

• Liver with biliary excretion, intestinal deconjugation and reabsorbtion.

Chemistry
Derivative of 4-hydroxycoumarin.

Dose

Initial bolus dose 0.2mg/kg to a maximum of 10mg, given daily for 2 days
Adjusted daily dose titrated against factor activity, measured by the prothrombin time / INR for factor VII activity.

1. The American College of Chest Physicians Guidelines
   1. Chronic Atrial fibrillation: INR 2.0 to 3.0
   2. Prevention of deep vein thrombosis propagation: INR2.0 to 3.0
   3. Prevention of thrombosis on mechanical heart valves: INR 2.5 to 3.5
2. Recent European investigations¹⁴ - Select a target INR within the range
   1. Prevention of thrombosis on mechanical heart valves:
      • Caged ball and tilting disk valves : INR 4.0 to 5.0
      • Bileaflet valves INR 2.5 to 3.0

Effects

1. Inhibition of the formation of active factors II, VII, IX and X
   1. Anticoagulation
      • Deep vein thrombosis prophylaxis
      • Thromboembolic prevention in mitral valvular lesions and dilated cardiomyopathy
      • Prosthetic valvular anticoagulation
      • Atrial fibrillation associated thromboemboli prophylaxis
      • Reduction in the thromboembolic events in acute myocardial infarction
   2. Haemorrhage
      • Cranial, ears, nose, urinary tract, skin, adrenals, gastrointestinal tract
2. Inhibition of the active forms of Protein C and its cofactor Protein S
3. Transfer across the placenta
   1. Embryopathy
   2. Teratogenicity - nasal hypoplasia, stippled epiphyses, blindness and frontal bossing
      {like the Conradi-Hunnerman type of chondrodysplasia punctata!}

Formulation

Coumadin 5mg tablets, Warfarin 3 and 5mg tablets

Interactions

1. Protein binding displacement
   • Phenytoin, nalidixic acid, oestrogens, metronidazole, miconazole
2. Depletion of intestinal vitamin K sources
   • Cephalosporins, cefamandole, moxalactam
   • Small intestine disease
   • Impaired vitamin K synthesis
   • Anabolic steroids
   • Inadequate diet
3. Enzyme induction with increased metabolism
   • Barbiturates, rifampicin, griseofulvin, nafcillin, inhalational anaesthetics
4. Increases in factors VII, VIII, IX and X
   • Pregnancy
   • Autosomal dominant trait

Venous Thromboembolism

Clinical risk factors - European Consensus Group Summary

• Low Risk
  • Minor surgery, less than 30 minutes duration
  • < 40 Years old with no additional risk factors
• Moderate Risk
  • Major surgery, longer than 30 minutes duration
  • > 40 Years old
  • Oral contraceptive medication within the last six weeks
  • Immobilised medical patients with active disease
• High Risk
  • Previous deep vein thrombosis
  • Major surgery for malignant disease
  • Orthopaedic surgery to the lower limbs
  • SIRS
  • Stroke, congestive cardiac failure and acute myocardial infarction.

Diagnosis

• Diagnostic Algorithm for deep vein thrombosis - Compression ultrasound with or without doppler flow assessment is the optimum non invasive test for symptomatic patients
• Pulmonary embolism
  • For patients with symptoms of deep vein thrombosis and pulmonary embolism the
    Diagnostic Algorithm should also be followed
  • Patients with normal chest radiographs should be investigated with a ventilation - perfusion scintigram
  • Patients with radiographic abnormalities, likely to cause an indeterminate ventilation - perfusion scan, should have  spiral computed tomography of the pulmonary vessels, if available!

Prevention

• Physical methods
  • Graduated elastic stockings
  • Arterial-venous impulse foot pump
  • Mobilisation
• Pharmacological methods

Deep Vein Thrombosis Prevention and treatment
Abbreviations: LMWH = Low Molecular Weight Heparin, UFH = Unfractionated heparin.
CONDITION	Fixed Dose UFH	Adjusted Dose UFH	Fixed Dose LMWH	Warfarin
DVT PROPHYLAXIS General Surgery Medical conditions	5 000U sc 8-12 hourly	Adjusted sc to aPTT upper range of normal	Dalteparin 2 500U sc daily Enoxaparin 2 000U sc daily	Considered unneccessary
DVT PROPHYLAXIS Orthopaedic Surgery Acute Spinal Injury Multiple Trauma	Considered inadequate	Adjusted sc to aPTT upper range of normal	Dalteparin 5 000U sc daily Enoxaparin 3 000U sc daily	Adjusted oral dose to INR 1.5-2.0
DVT TREATMENT	Considered inadequate	Infusion to aPTT 1.5-2.0 normal = heparin level of 0.2-0.4U/ml	Dalteparin 100U/kg twice daily Enoxaparin 100U/kg twice daily antiXa levels of 0.1-0.2 U/ml	Adjusted oral dose to INR 2.0-3.0
Acute myocardial ischamia Acute vascular insufficiency Haemodialysis	Considered inadequate	Infusion to aPTT 1.5-2.0 normal	Dalteparin 100U/kg twice daily Enoxaparin 100U/kg twice daily	Adjusted oral dose to INR 2.0-3.0
Cardiopulmonary bypass	Considered inadequate	Infusion to aPTT 2.0-3.0 normal	No data available	To long onset and neutralisation

Surgical specialities

• Urology
  Mechanical methods are preferred as haemostasis is difficult during endoscopic procedures
• Head and neck surgery
  Mechanical methods are preferred as the vascularity of the area makes haemostatis difficult
• Neurosurgery
  Mechanical methods are preferred as the consequences of an intracranial bleed are so severe.

Disseminated Intravascular Coagulation

The most pronounced disorder of coagulation and fibrinolysis is disseminated intravascular coagulation.  The initial common factor in all of the precipitating conditions is an uncontrolled circulation of phospholipid in the blood, disrupting the normal localisation of the clotting process.

• Tissue Factor
  • The vascular endothelium is one of the principle targets of cytokines in sepsis
    • Tumour necrosis factor, interleukin 1 and endotoxin enhance tissue factor synthesis and expression
  • The vascular endothelium is one of the principle sites of injury in pre-eclamplsia
  • Amniotic fluid embolus
  • Abruptio placentae
  • Intra uterine foetal death
  • Haemolysed red blood cells release tissue factor
  • Massive crush injuries
• Platelet factor 3
  • Immune complexes and bacteria stimulate platelet aggregation and activation.

Treatment

• Elimination of the cause of phospholipid release
• Replacement of Antithrombin III (Personal viewpoint - Limited published data)
  • Antithrombin III is consumed in the development of disseminated intravascular coagulation
  • The deficiency of Antithrombin III as a multipotent inhibitor is pathological, exacerbating the process of disseminated intravascular coagulation
  • Patients who have AT-III levels under 50% are gravely ill. Such AT-III levels are strongly predictive of death in patients with DIC.
  • Replacement of Antithrombin III in patients with markedly diminished activity is of therapeutic benefit, rapidly "turning off" the DIC, and may in fact diminish mortality.
• Administration of heparin is controversial, especially as this dramatically shortens the half-life of AT-III
• Administration of clotting factors is very controversial. If specific factor deficiencies have been identified, such replacement just may be of benefit.

Platelet Transfusion

The role of platelet transfusions, especially those given prophylactically to forestall bleeding remains controversial.  The currently accepted threshold for platelet transfusion was derived from a 1962 study by Gaydos.  In this study patients with leukaemia who had a platelet count of less than 20x10⁹, had an increased frequency of gross haemorrhage.  The study did not try to establish a threshold value that prevented all bleeding.  There are a number of problems with giving a platelet transfusion that must be considered prior to the indiscriminate usage of this blood product.

1. Collection
   • Random donor platelets are centrifuged from a freshly collected unit of blood. It consists of:
     Platelets (average 7x10¹⁰) - 4-10 units are combined to have an adequate therapeutic effect.
     Numerous contaminating white cells - Sensitise the hosts immune system against the human leukocyte antigen system.  Leukocyte depletion techniques are gaining in popularity.
     Plasma.
   • Single donor platelets are collected by apheresis from a freshly collected unit of blood. It contains 5x10¹¹ platelets all with the same antigenic type.
2. Storage
   • Platelets must be stored at room temperature and constantly agitated to facilitate gas exchange, otherwise they lose their ability to aggregate
   • Bacterial growth is promoted by this method of storage, limiting the storage time to five days.
3. Compatibility
   • Antibodies from prior exposure to alien white blood cells and platelets can destroy new platelets by attacking:
     Class I HLA proteins (platelets only have class I HLA proteins and so do not effect primary immunisation)
     ABO proteins
     Platelet-specific proteins
   • There is no reliable compatibility test for screening platelet components.
4. Transfusion "triggers"
   • Surgical bleeding may become excessive at platelets counts less than 75x10¹⁰/L
   • Spontaneous small vessel bleeding does not increase until the platelet count is less than 5x10¹⁰


   [ Rubella, P. The Threshold for Prophylactic Platelet Transfusions in Adults with Acute Myeloid Leukaemia N Engl J Med 1997 337 pp1870-1875 ]
   The risk of major bleeding is similar with platelet transfusion thresholds of 20x10¹⁰/L and 10x10¹⁰/L when there is active bleeding or invasive procedures were needed.

5. Transfusion "failures"
   • The number and condition of stored platelets are often suboptimal, with early demise of the transfused platelet
   • Fever, splenomegaly, disseminated intravascular coagulation and drugs in the recipient rapidly destroy transfused platelets
   • Alloimmunisation increases logarithmically with the number of platelet transfusion.

Bibliography

Web Page Author: hopley@anaesthetist.com
